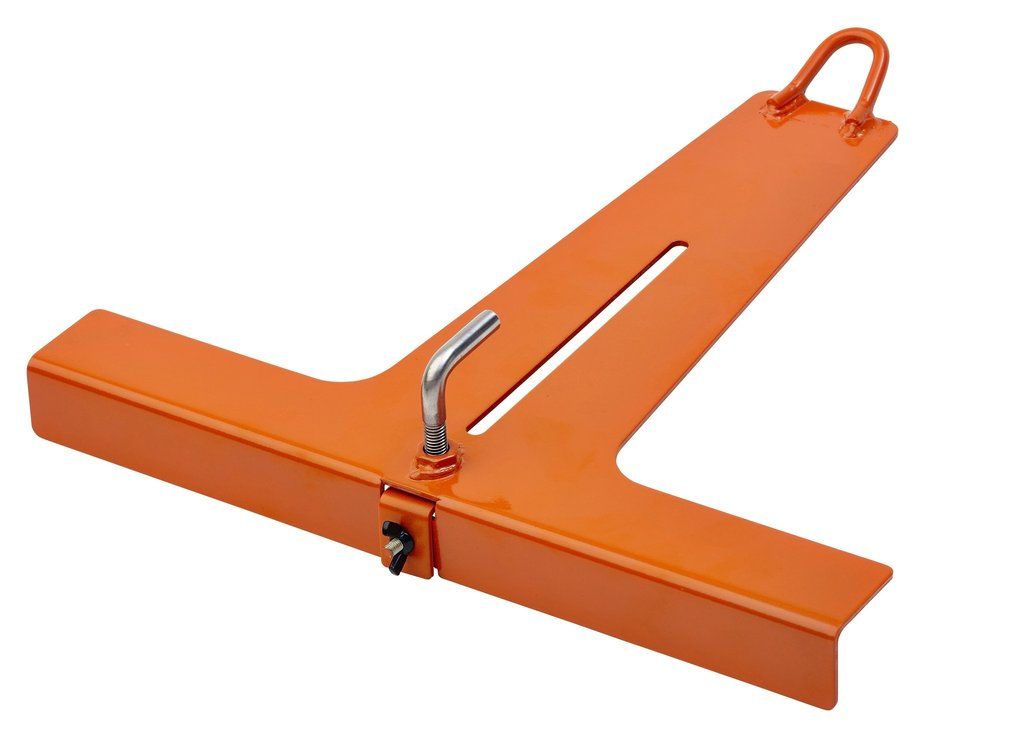

LINQ HSTBA TETHA T-BAR TEMPORARY ANCHOR POINT 15kN

ProChoice LINQ Height Safety Anchor Tetha T-Bar Applications:

Construction, Utilities, Solar installations, Paintwork, Plumbing, Air conditioner maintenance and installation, General roof work

Warning: For use on metal clad roof only - Refer to product user guide for safe use instructions.

-Conforms to ASNZS 1891.4 requirements

-An affordable temporary and reusable alternative to installation of a permanent purlin style anchor

-Compact design and lightweight materials provide a tried and tested safety solution

-Rated for up to a 140kg user

-Can withstand fall arrest forces up to 22kN (It is important to ensure that the structure to which any LINQ Tetha anchor plate is installed, has sufficient strength (refer to ASNZS 1891.4) to sustain the applied load)

-The Tetha T-Bar has an easy to use double tie off L-screw and wing nut applicator that clips onto the roof edge (for suitable profiles only)

-Can be used as a temporary anchor point in applications along a roof line where no permanent anchor point exists

-Quick installation and removal. (Installation should always be conducted by a competent person as described in ASNZS 1891.4)

-High strength alloy steel - ultimate breaking strength: 22kN (min)

-Zinc galvanised plated; over coated with Orange Electrophoresis plating for double corrosion resistance

-Vital Test Compliance: Static strength: 22kN for 3 minutes (Ultimate breaking test approx. 28kN)

-Dynamic performance: Maximum breaking force does not exceed 6kN in the line when tested on a free falling mass of 100kgs with the use of LINQ shock absorber pack
