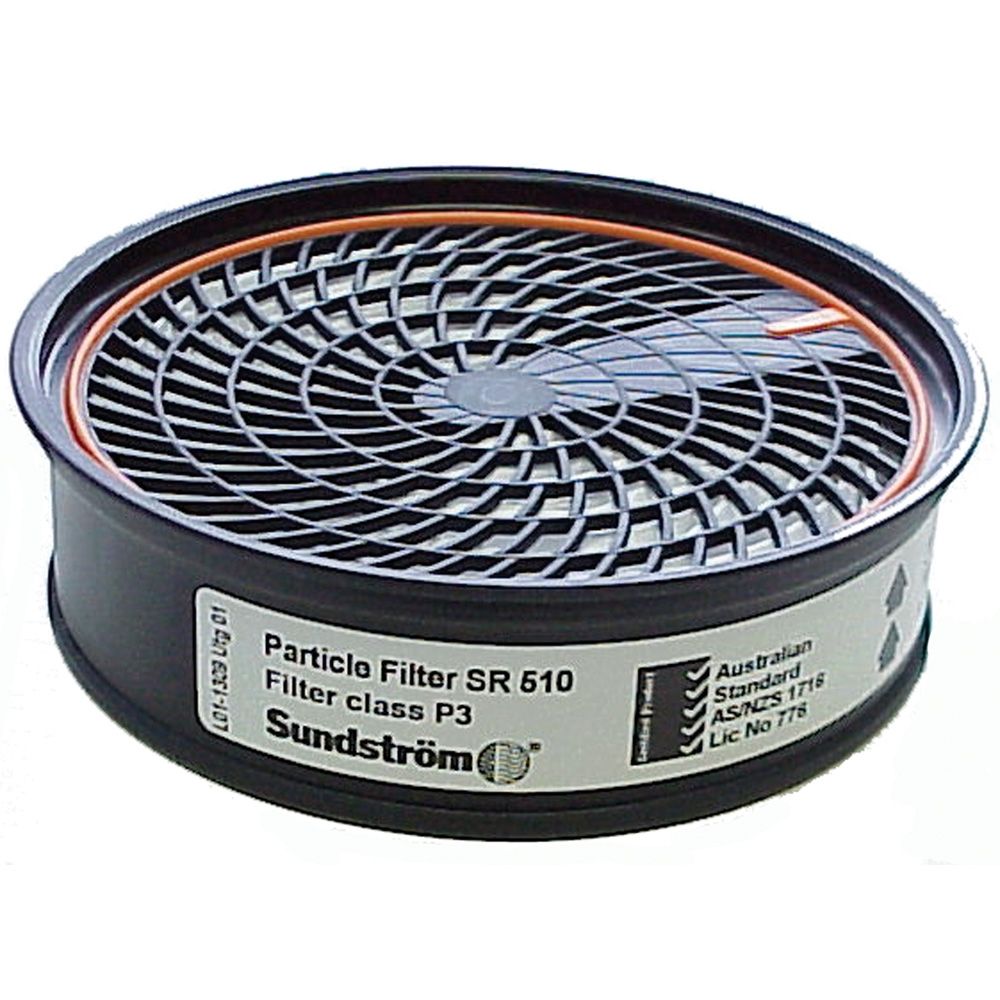

SUNDSTROM SR510 P3 PARTICLE FILTER

SUNDSTROM SR510 P3 PARTICLE FILTER

Description:  High performance particle filter class P3. The filter flange features an O-ring that optimises the seal to the front rim of Sundstr?m gas filters.

Material:  Plastic polypropylene. No metal parts.

Usage:  Used against all types of wet and dry particles, such as dust, smoke, aerosols, spray, asbestos, bacteria, viruses and mould. The filter fits into Sundstr?m half and full face masks, as well as the SR700 particle PAPR. The filter can be attached to Sundstr?m non-threaded gas filters. It is also used on front of Sundstr?m's threaded gas filters when used on the SR500 PAPR.

Size

Largest diameter: 107 mm
Thickness: 31 mm

Weight:  44 g

Filtration paper

Particle filter contains about 1,300 sq cm (200 sq inches) hydrophobic fibreglass paper.

Filtration efficiency

Paraffin oil aerosol: >99.997% (tested by INSPEC).

Pressure drop

At 30 l/min: 40 Pa (standards requrement: <120 Pa)
At 95 l/min: 120 Pa (standards requirement: <420 Pa)

Storage

Store at room temperature in clean, dry place. If seal has been broken, store away from contaminants in an air-tight container. Shelf life is 10 years if seal is unbroken. Expiry date printed on filter.
