YHS GS007 PAPR GRINDING SHIELD HELMET RESPIRATORY KIT

YHS GS007 PAPR GRINDING SHIELD HELMET RESPIRATORY KIT

Increased workplace protection requirements and expanded fit testing means that bearded workers need alternatives to traditional face fitting respirators.

Like our existing compact respiratory product range we have x 2 head tops covering broad applications, supported with local inventory

#GS007 (Grinding Shield) is the premium version offering integrated head/eye/face protection required by construction workers etc

#SH007(Soft Hood) model is the lightweight economical alternative where head / impact protection is not generally required eg spraying etc

Both styles are available with P3, A1P3 or ABEK1P3 options for broader applications and feature the latest technology in comfort, safety and performance.

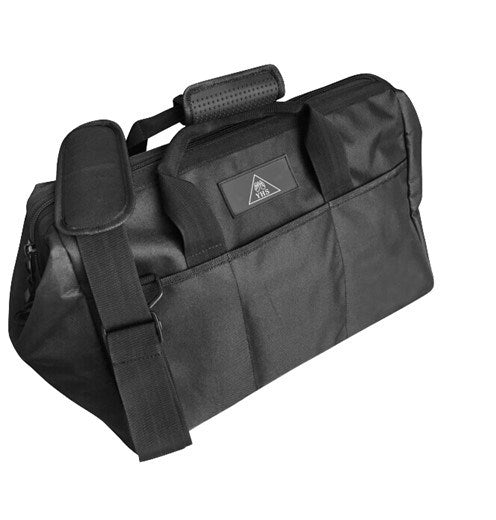

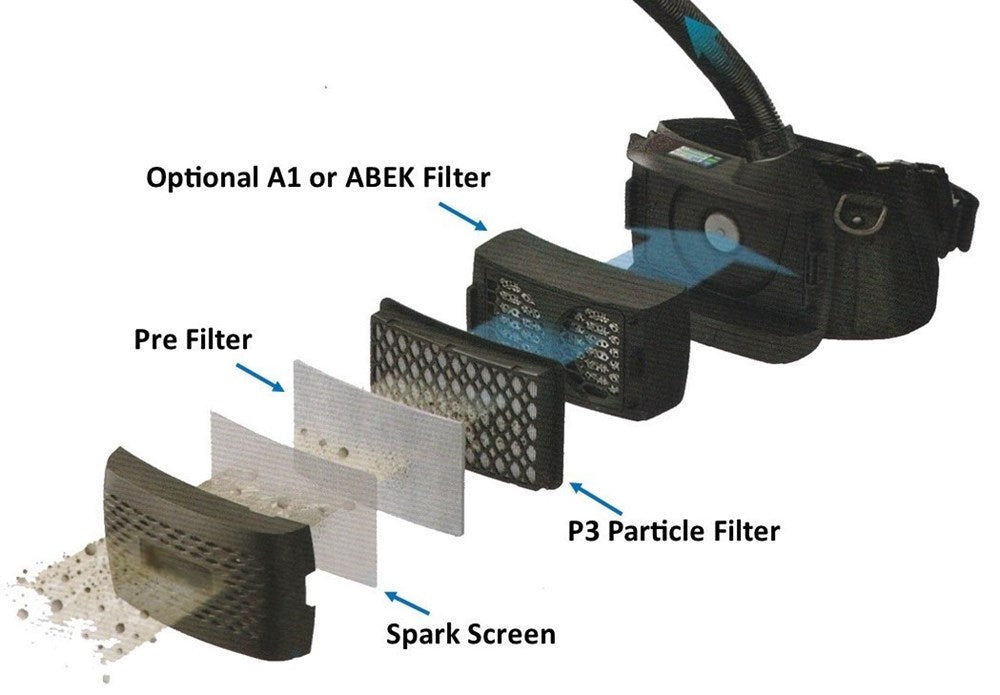

All YHS PAPR kits include: Spark Screen, Pre-Filter, P3 Particle Filter, Blower Unit, Battery, Battery Charger, Airflow Indicator, Hose with Hose Cover, Comfort Belt, Shoulder Straps, Visor Overlays and Carry Bag. Optional A or ABEK filters and Extended Battery

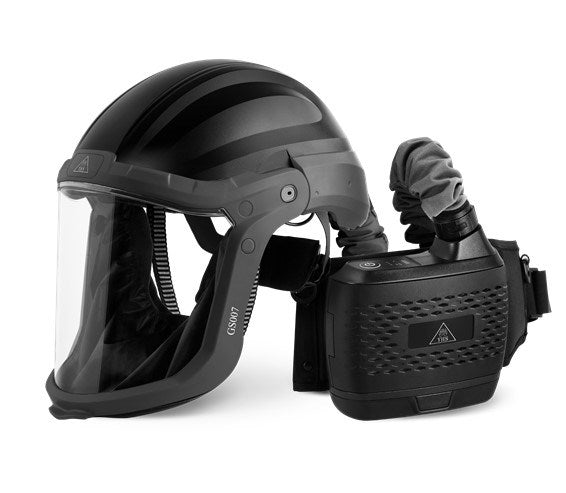

GS007 Grinding Shield Helmet

• Impact resistant face shield protects eyes & face & provides unobstructed vision with no distortion.
• Face shield impact rating certified to AS/NZS1337 & EN166:2001, 3 -Splashes of liquids, 9 -Molten metals and hot solids.
• AS/NZS certified hard hat protection.
• Water resistant and flame retardant face seal.
• Comfortable, adjustable head gear to suit a variety of head shapes and sizes.
• Adjustable air outlet to direct airflow to face or visor.
• Compatible with neck band earmuffs
• Helmet weight: 792g.
• Operational temperature: -5c to 55c.

Blower Unit

• Intelligent air supply self-adjusts airflow rate according to filter loading.
• Filter status warning lights to indicate and show how blocked the filter is.
• Adjustable airflow ? Low speed 170 lpm ? High speed 210 lpm .
• Battery indicator fully charged shows 4 bars. 1 bar indicates it is ready for recharge.
• One button to control power and airflow.
• Audio-visual and vibrating alarm ? indicates when battery charge and/or filter replacement is required.
• Rechargeable Li-ion battery. 1 hour quick charge to 90% capacity, 1.5 hour to 100% capacity (standard battery).
• 9 hours of uninterrupted air-flow at 170 lpm.
• Flame retardant breathing hose when fitted with hose cover.
• High level respirator protection, certified to AS/NZS 1716:2012.
• P3 main filter provides 99.97% particle protection.
• Optional A1 and ABEK gas filters available.

Specifications:

Airflow Rate:

Manufacturer?s minimum flow rate: 165+lpm (5.8+cfm) Low Speed: 170+lpm (6+cfm) High Speed: 210+lpm (7.4+cfm)

Fast Charging Standard Battery

Battery type: rechargeable Li-ion battery Battery duration: 170+lpm - 9 hours 210+lpm - 6 hours

Battery charge time: 1 hour

Battery life: ? 500 charges

Filter

Filter efficiency: >99.997% Particle Filter (P3 Filter) Optional Gas Filters (A1 or ABEK) Alarms: Visible, Audible & Vibration

Weight: 1020g (Blower unit + standard battery)
